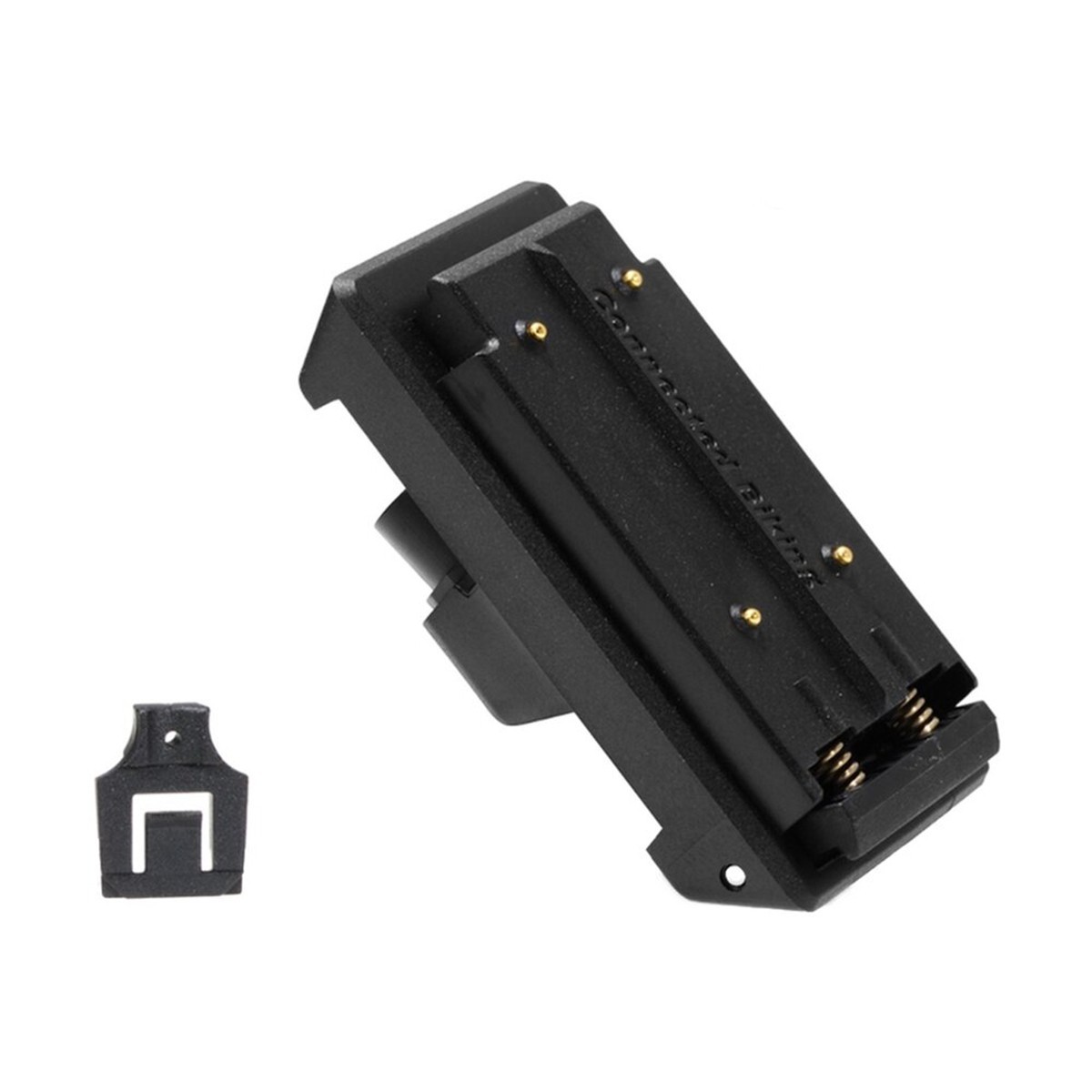

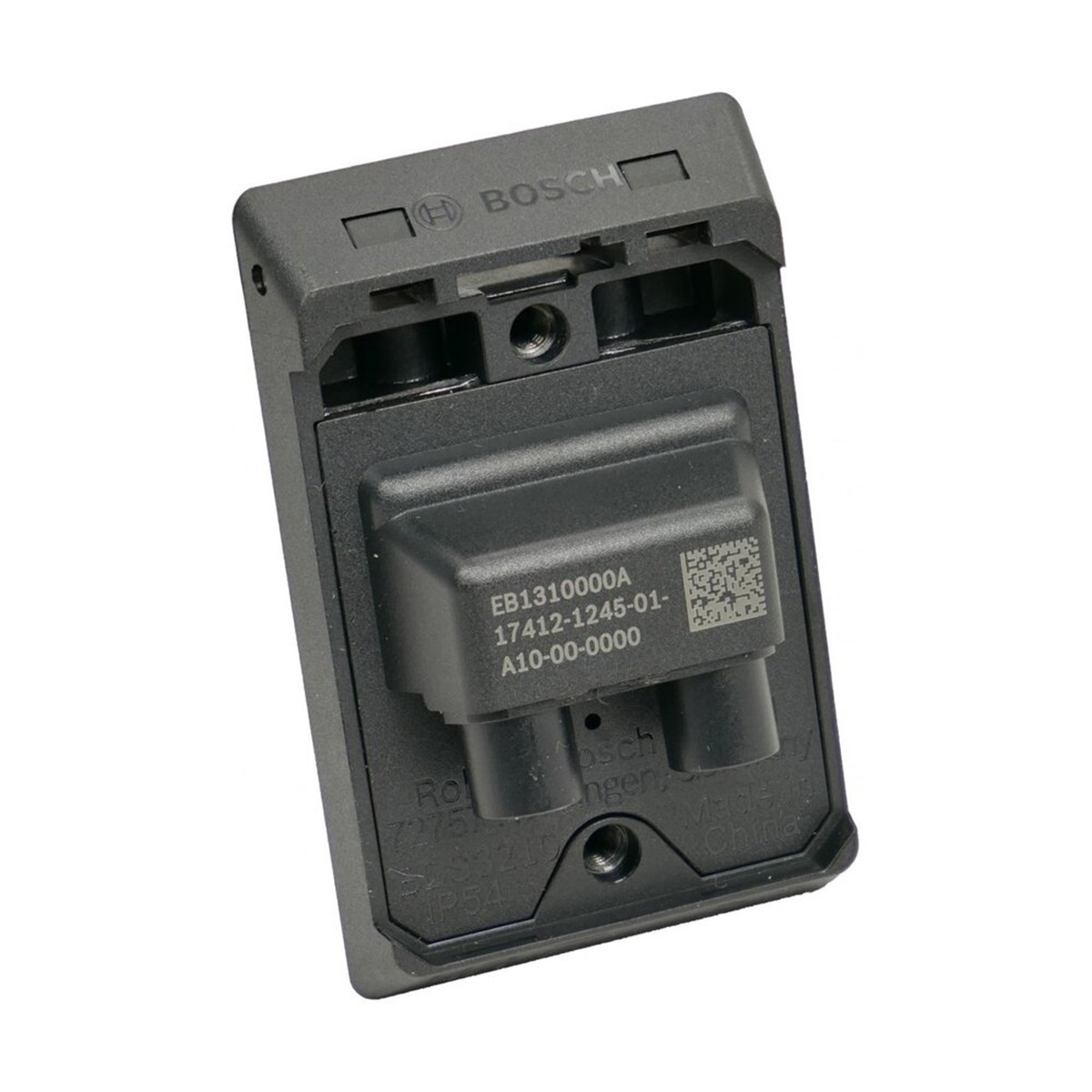

Display interface BOSCH Rearplug (BDS3210)
Ensure a stable and secure connection for your display with the genuine Bosch Display Interface Rearplug . This mount holder is specifically designed for the new generation Bosch Smart System (BES3) from model year 2022 and onwards. It allows for the easy and reliable mounting of the Kiox 300 (BHU3600)display or the SmartphoneGrip (BSP3200) phone mount directly onto your e-bike's handlebars.
The interface features a practical spring-release mechanism that enables quick and effortless attachment and detachment of the display when leaving your bike. For added security, the kit includes a screwable removal lock (anti-theft device) that secures the display firmly in place. This model features a Rear Plug cable exit direction and is designed for an arm socket position facing Front of Bar.
Key Advantages:
- Bosch BES3 Smart System: Designed specifically for e-bike systems from model year 2022 and later.
- Spring Release: Exceptionally quick and easy mounting/dismounting of the display with a single motion.
- Anti-Theft Protection: Includes a mechanical removal lock that prevents unauthorized or quick removal of the Kiox 300.
- Versatility: Allows alternative use of either the Kiox 300 display or the Bosch SmartphoneGrip for your phone.
Product Line Compatibility:
- Bosch Active Line Plus Smart System (BDU334Y)
- Bosch Cargo Line Gen4 Smart System (BES3)
- Bosch Performance Line CX Gen4 Smart System (BES3)
- Bosch Performance Line Gen3 Smart System (BES3)
- Bosch Performance Line SX Smart System (BDU31)
Technical Specifications:
- Model: Display interface, Rearplug BDS3210
- Manufacturer ID: EB1310000A / BDS3210
- Cable Position: Rear Plug
- Arm Socket Position: Front of Bar
- Power Supply: Directly via the e-bike on-board power supply
- Important: Cables, handlebar clamp, and socket are not included in the scope of delivery and must be ordered separately
