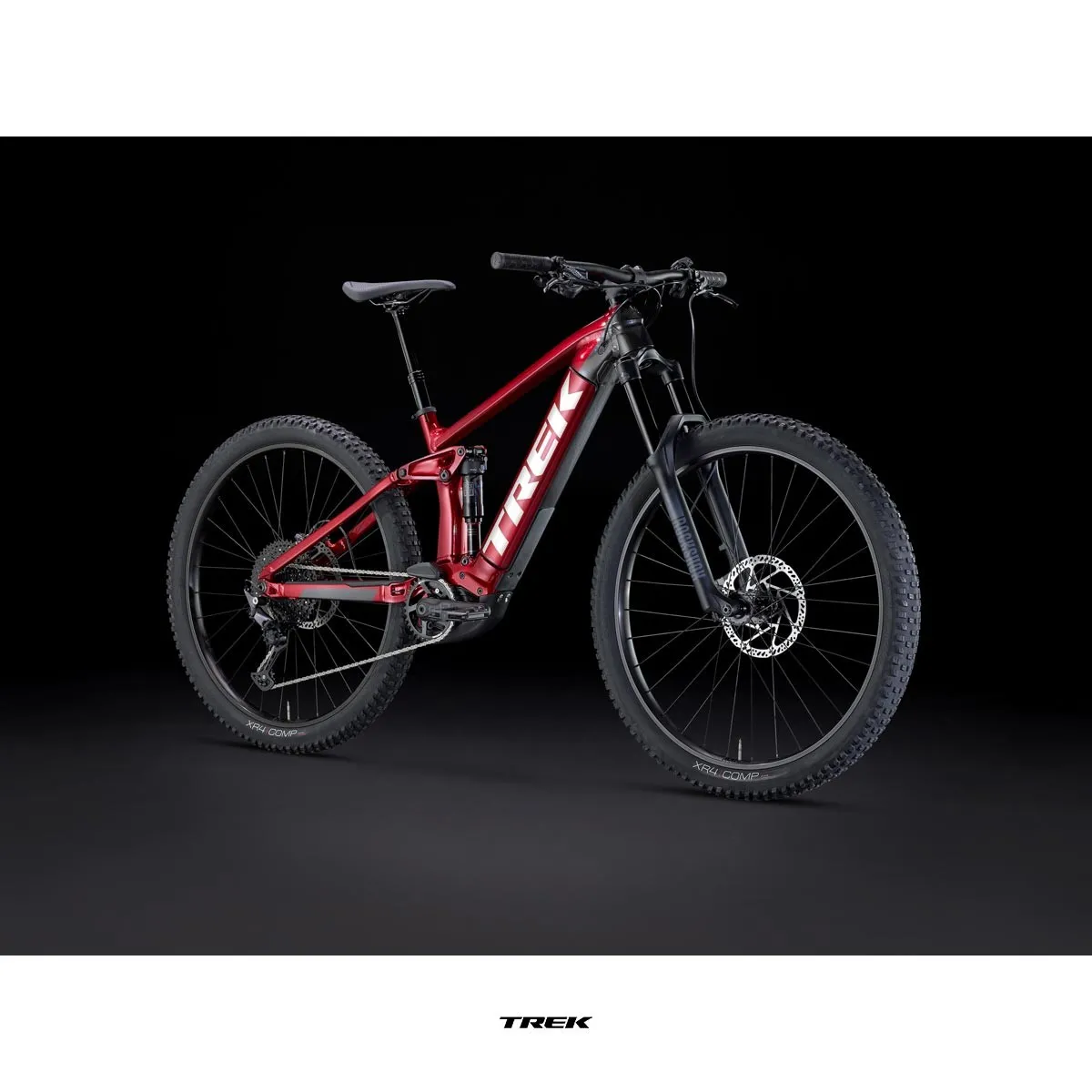

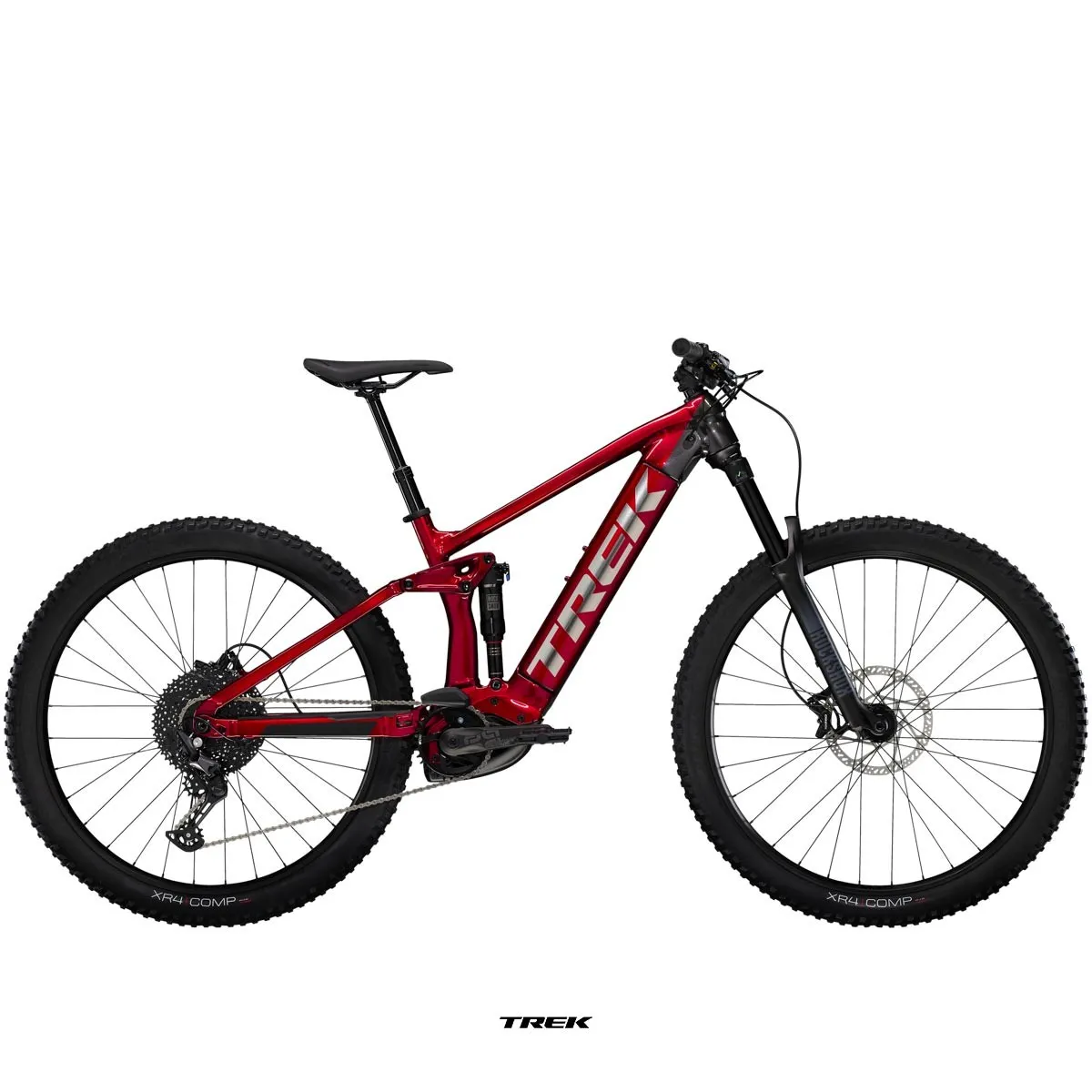

TREK Rail 5 Deore 625W Rage Red GEN 3 | E-MTB (Full Suspension)
The Rail 5 625 is an electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful new Bosch drive system that's basically like having your own shuttle.
3834.18 €
Tax included
Out-of-Stock
Share:
| Model | RAIL 5 DEORE 625W |
|---|---|
| Battery | Bosch PowerTube 625Wh / smart system |

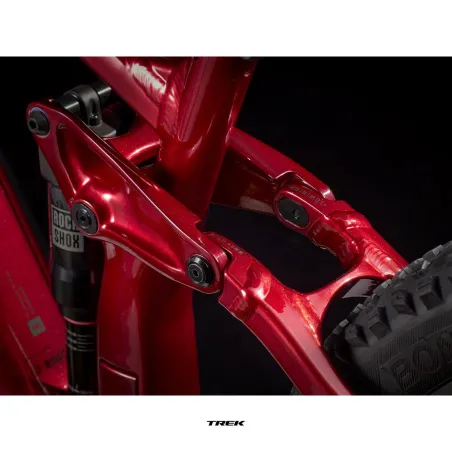

| Frame | Alpha Platinum Aluminium / Removable Integrated Battery (RIB) / tapered head tube / Control Freak internal routing / magnesium rocker link / Motor Armour / Mino Link / ABP / Boost148 / 12 mm thru axle / 150 mm travel |
| Fork | RockShox 35 Gold RL / DebonAir spring / Motion Control damper / lockout / tapered steerer / 44 mm offset / oversized crown for eMTB / Boost110 / 15 mm Maxle Stealth / 160 mm travel |

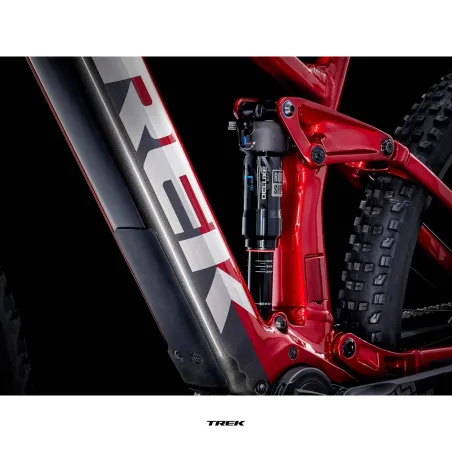

| Shock | RockShox Deluxe Select+ RT / 230 mm x 57.5 mm |
| Rear wheel | Bontrager alloy / sealed bearing / alloy axle / 6-bolt / Shimano 8/9/10 freehub / Boost148 / 12 mm thru axle |
| Rims | Alex MD35 / tubeless compatible / 32-hole / 35 mm |
| Tyre | Bontrager XR4 Comp / wire bead / 30 tpi / 29x2.60 |
| Shifter | Shimano Deore M6100 / 1X12 speed |

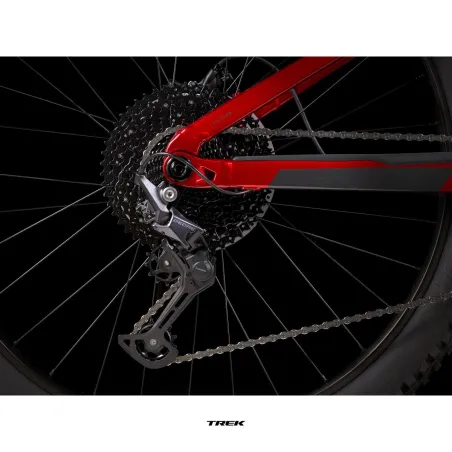

| Rear deraileur | Shimano Deore M6100 / long cage |
| Cassette | SunRace CSMZ800 11-51 / 12 speed |
| Chain | Shimano Deore M6100 |
| Pedals | Wellgo VPE-536 |
| Saddle | Bontrager Arvada / 138mm |
| Seatpost | TranzX JD-YSP18 31.6 mm : S 100 mm travel 361 mm length / M-XL 130 mm travel 425 mm length |
| Handdlebar | Bontrager alloy / 31.8 mm / 15 mm rise / 750 mm width |
| Grips | Bontrager XR Trail Comp |
| Stem | Bontrager Rhythm Comp / 31.8 mm / Knock Block / 0-degree / 50 mm length |
| Brakes | Tektro HD-M745 4-piston hydraulic disc |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle / rider and cargo) of 125 kg (275 lb). |
| Bike weight | M - 24.88 kg |

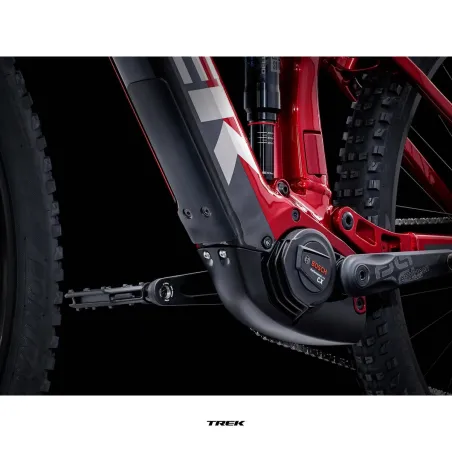

| Motor | Bosch Performance CX / 250 watt / 85 Nm / 25 km/h |
| Controller | Bosch LED remote / smart system |
| Equipment | Bosch standard 2A / 230V / smart system |
